IS&S Integrated Standby Unit (ISU)

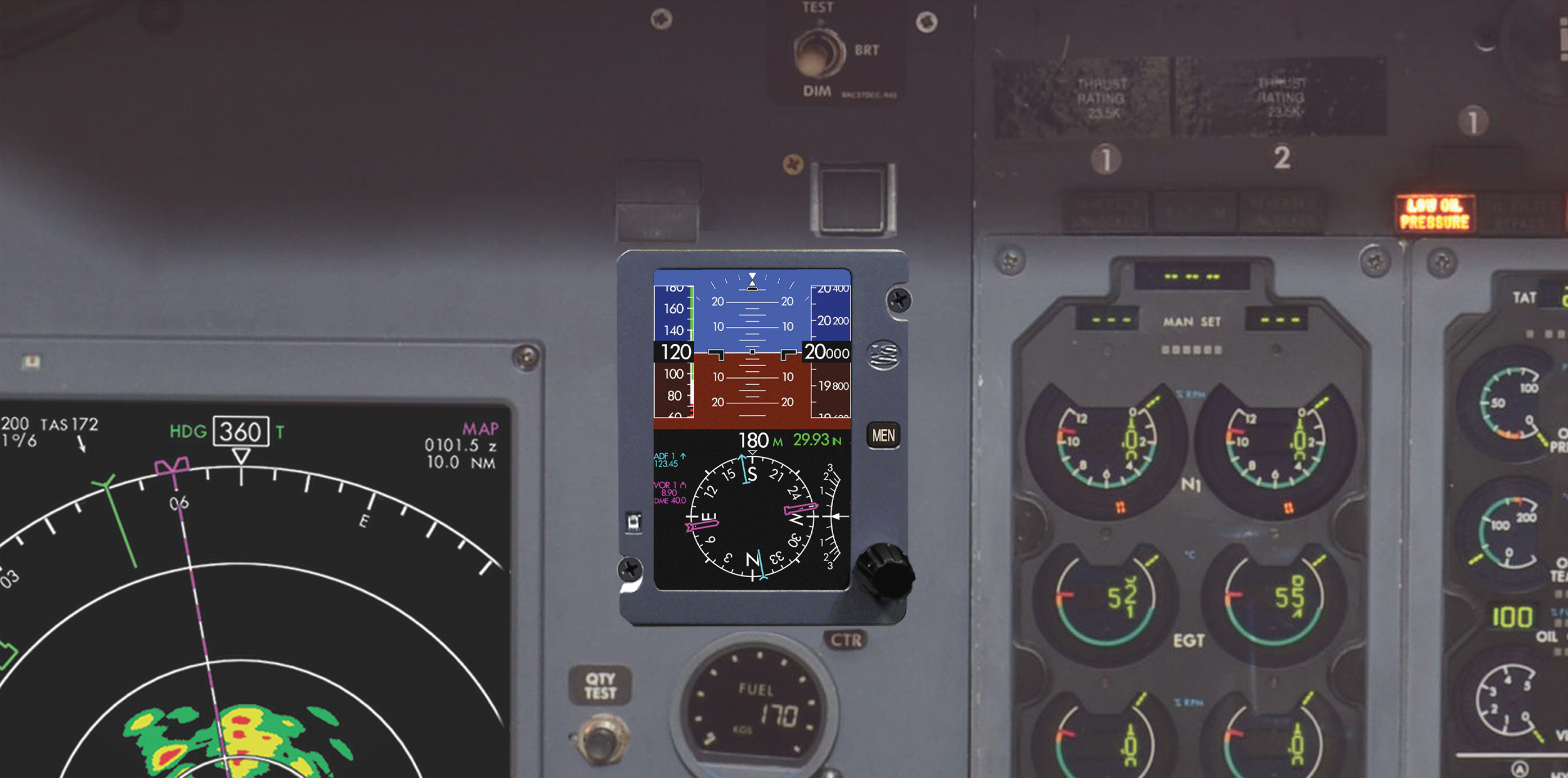

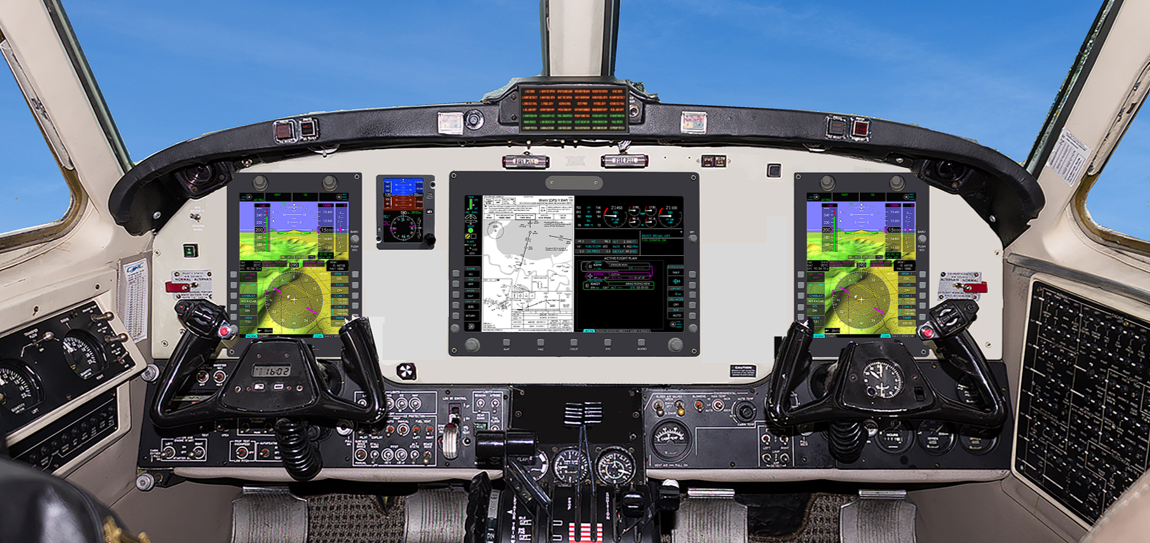

QCM Design, an EASA-approved Part-21J DOA, is partnering with world-renowned avionics manufacturer, IS&S, and Prime Avionics, a leading Maintenance Repair Overhaul (MRO) organization in Africa, to design and upgrade the flight decks of older aircraft to glass cockpits, starting with the IS&S’s Integrated Standby Unit (ISU), a modern device that simplifies and enhances how pilots view critical flight information.
Project Partnership & Overview
The Innovators behind the ISU
IS&S is a trusted, world-renowned avionics manufacturer specializing in the design, development, manufacture, and support of advanced equipment for commercial, military, government, and business aviation. Their impressive range of avionics includes Precision Air Data Instruments, Integrated Avionics Suites, Flight Management Systems, Flat Panel Multifunction Displays, and more.
The newest addition to IS&S’s product range, the ISU has been designed to enhance safety through simplicity and precision.
Designing & Certifying the Installation
As an EASA-approved Part-21J endorsed to certify minor and major changes, QCM Design designs and verifies architectural solutions to ensure they adhere to all EASA safety and quality standards, after which point they obtain EASA certification.
Completing the Installation of the ISU
With over two decades of structural and avionics expertise, Prime Avionics‘ technicians are experienced in completing smooth and efficient installations. In this case, the ISU is installed based on QCM’s designs and manuals, ensuring a seamless integration and minimal downtime.
Currently, QCM Design is working in partnership with IS&S and Prime Avionics to upgrade the flight deck of Beechcraft 1900 to ensure they remain compliant into the future, starting with the Integrated Standby Unit (ISU).

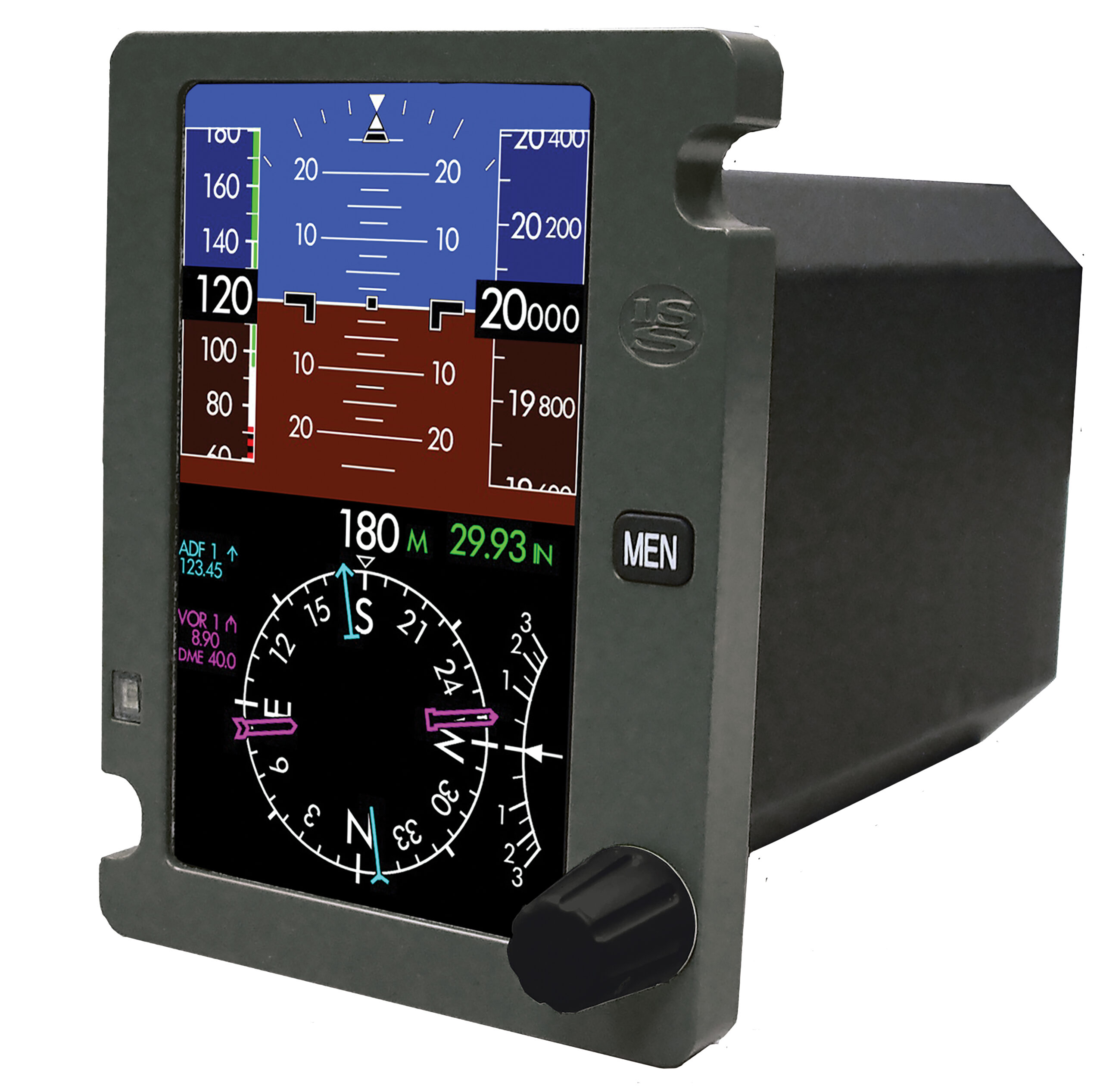

Introducing the IS&S’s New Integrated Standby Unit (ISU)
A modern, reliable, and easy-to-read solution for critical flight information, this newest addition to IS&S’s avionics range is a valuable upgrade for both new and existing aircraft.
Combining altitude, attitude, airspeed, slip/skid, and navigation data into one easy-to-read, high-quality display, this innovative ISU improves pilot safety and workload. And from a maintenance perspective, its solid-state design is more dependable than older mechanical instruments, reducing maintenance needs.
This compact device is designed to be easily upgraded and customized to ensure it meets the pilot’s requirements. It has been designed to support additional enhancements for radio management and alternative navigation. The Inertial Measurement Unit (IMU) is adaptable to include accelerometers, gyroscopes, and magnetometers to provide accurate readings. It can also be enhanced with an air data module to independently display altitude, airspeed, and Mach number. An advanced algorithm corrects any magnetic interference, ensuring reliable readings.
Each ISU is calibrated to the specific aircraft it’s installed in, storing vital data like error corrections and speed limits. Suitable for various types of planes and helicopters, the ISU comes in a standard size and can be easily installed across different aircraft models.
While small in size, the overall impact of this solution is not to be underestimated. Using this ISU, pilots can expect improved readability of the ISU in all lighting conditions, due to the high-resolution LCD display, LED backlighting, and adaptive brightness. Its familiar display format also contributes to enhanced situational awareness and reduced pilot workload.
When it comes to the safety and efficiency of your aircraft and all passengers and crew members aboard, there’s no compromising on quality and service. IS&S’s entire range of avionics reflects their core commitment to developing innovative, high-quality solutions which exceed customer expectations and improve safety and efficiency. And throughout their entire process, from manufacturing to installation, IS&S continues to provide the personal and responsive service on which its success has been achieved since 1988, no matter how small or large the customer.
ISU Features & Options
Features:
- Advanced display technology
- Versatile interface capability
- Highly accurate data sensors
- DG Mode with 15 degrees per hour heading stability without use of magnetometers
- Software RTCA DO-178B Level B
- Complex Electronic Hardware: RTCA DO-254 Level B
- Hardware Qualification: RTCA DO-254 Level B
- ILS/VOR via configurable ARINC 429 inputs
- Reduced pilot workload
- Increase safety
- Logistics and maintenance benefits by integrating multiple functions into one LRU
Options:
- NVIS
- External magnetometer interface
- Standby Radio Management Unit (RMU)
- Alternate Navigator Functionality
- RVSM Compliance
- Various sizes
Find the full system specifications and technical overview of IS&S’ Integrated Standby Unit here
Contact Us
QCM Design is an EASA Approved Part-21 DOA with over 10 years’ experience helping clients achieve their aircraft design goals, while ensuring that the highest safety regulations and industrial quality standards are met.
For more information about the IS&S Integrated Standby Unit, the design and certification for your aircraft, or to enquire about how we can assist with any other minor or major changes to your aircraft, please send us an email via design@part21.ch, or submit the contact form below.
We can also tailor-make solutions for any desired design concept, including the installation of new avionics or electronics systems, cabin interiors, galleys, or various other equipment installations.
Contact QCM Design
Please submit your enquiry using the form below, and someone from our team will get back to you shortly.
About Our Partners
Prime Avionics
Prime Avionics is a leading Maintenance Repair Overhaul (MRO) organization based in South Africa, specializing in Flight Data Recorders (FDRs) and Cockpit Voice Recorders (CVRs) over the past 25 years of operation.
Their critical thinking combined with their optimistic, “can-do” attitude has seen them successfully complete avionics installations across a range of aircraft, many of which were deemed to be unfeasible by other operators.
While their proven track record of avionics installations is what initially attracts clients, Prime Avionics’ customer-centric approach to every project is why clients keep coming back. With customer excellence at the heart of everything they do, Prime Avionics prioritize finding and providing the most cost-effective solutions without compromising on quality or safety. Their extensive portfolio of solutions ensures that they can meet the diverse needs of their clients, offering products that are not only advanced but also economically viable.
This commitment to innovation, and to providing cost-effective and reliable recording solutions for aviation, has seen Prime Avionics establish a strong reputation over the past quarter-century as an industry leader in the integration and implementation of FDRs and CVRs.
Innovative Solutions & Support (IS&S)
From its inception, IS&S has been at the forefront of avionics innovation, maintaining a strong focus on improving flight safety and efficiency, qualities which are reflective across their product range.
This dedication to developing innovative, useful solutions over the past 36 years has seen IS&S become a world leader in the avionics industry, receiving numerous awards for its products from prominent customers including Boeing, Lockheed Martin, Rockwell Collins, Gulfstream, and Raytheon.
Specializing in the design, development, manufacture, and support of advanced equipment for commercial, military, government, and business aviation, their impressive product range includes Precision Air Data Instruments, Integrated Avionics Suites, Flight Management Systems, Flat Panel Multifunction Displays, and more.
